Let's set a breakpoint

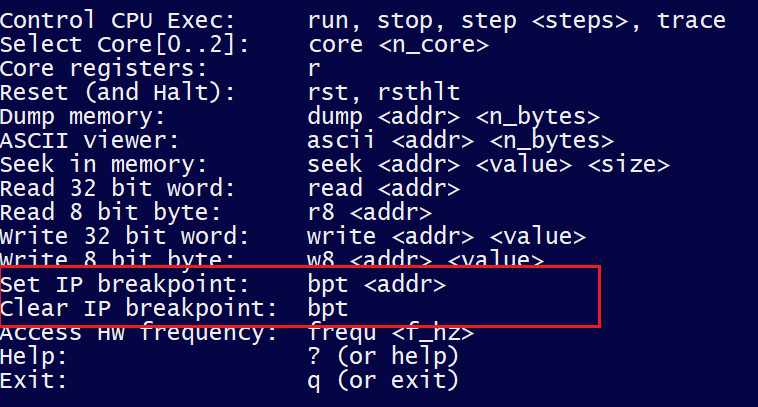

 AURIX™ Debugger, even if is a simple tool, permits to set breakpoints with the interactive command: 'bpt':

Note: to have the latest menu, just type the '?' in the interactive user interface.

As first example, I will set a breakpoint, reset the hardware, start execution and check that IP (Instruction Pointer) is stopped at given breakpoint address:

Where:

• bpt --> set the breakpoint at 0x80001670
• rsthlt --> reset the AURIX™ board and halt the CPU
• run --> go, start CPU execution (till set breakpoint, at 0x80001670)
• t --> trace, execute the current instruction and show the respective TriCore™ opcode syntax and details (if known)

And as second example:

Where:

• bpt --> set the breakpoint at 0x80001688
• rsthlt --> reset the AURIX™ board and halt the CPU
• g --> go, start CPU execution (till set breakpoint, at 0x80001688)
• g --> go...
